Best Techniques to Emphasize Highest/Lowest Values Using Microsoft Excel

Automatically highlighting data in your spreadsheets makes reviewing your most useful data points a cinch. So if you want to view your top- or bottom-ranked values, conditional formatting in Microsoft Excel can make that data pop.

Maybe you use Excel to track your sales team’s numbers, your students’ grades, your store location sales, or your family of website’s traffic. You can make informed decisions by seeing which rank at the top of the group or which fall to the bottom. These are ideal cases in which to use conditional formatting to call out those rankings automatically.

Apply a Quick Conditional Formatting Ranking Rule

Excel offers a few ranking rules for conditional formatting that you can apply in just a couple of clicks. These include highlighting cells that rank in the top or bottom 10% or the top or bottom 10 items.

Select the cells that you want to apply the formatting to by clicking and dragging through them. Then, go to the Home tab and over to the Styles section of the ribbon.

Click “Conditional Formatting” and move your cursor to “Top/Bottom Rules.” You’ll see the above-mentioned four rules at the top of the pop-out menu. Select the one that you want to use. For this example, we’ll choose the Top 10 Items.

On the Home tab, click Conditional Formatting for Top or Bottom Rules

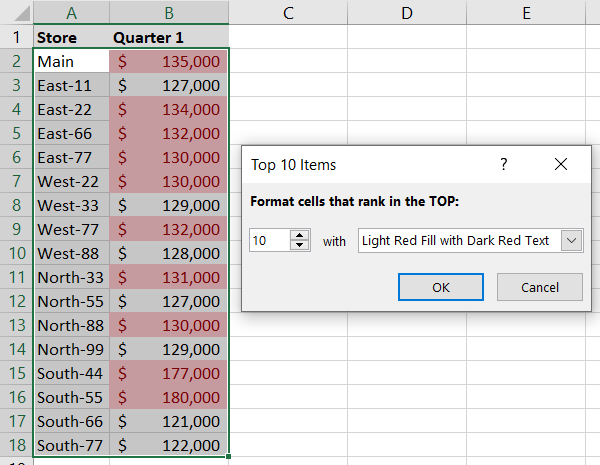

Excel immediately applies the default number (10) and formatting (light red fill with dark red text). However, you can change either or both of these defaults in the pop-up window that appears.

Conditional formatting defaults for Top 10 Items

On the left, use the arrows or type in a number if you want something other than 10. On the right, use the drop-down list to choose a different format.

Conditional formatting defaults for Top 10 Items

Click “OK” when you finish, and the formatting will be applied.

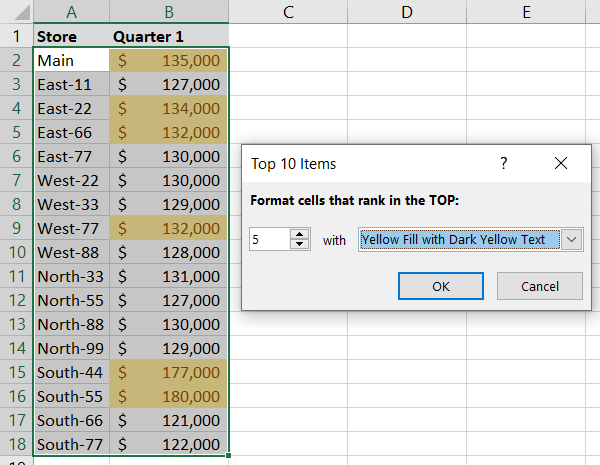

Here, you can see that we’re highlighting the top five items in yellow. Since two cells (B5 and B9) contain the same value, both are highlighted.

Conditional formatting top 5 items in yellow

With any of these four quick rules, you can adjust the number, percentage, and formatting as needed.

Create a Custom Conditional Formatting Ranking Rule

While the built-in ranking rules are handy, you might want to go a step further with your formatting. One way to do this is to select “Custom Format” in the above drop-down list to open the Format Cells window.

Select Custom Format

Another way is to use the New Rule feature. Select the cells that you want to format, head to the Home tab, and click “Conditional Formatting.” This time, choose “New Rule.”

On the Home tab, click Conditional Formatting, New Rule

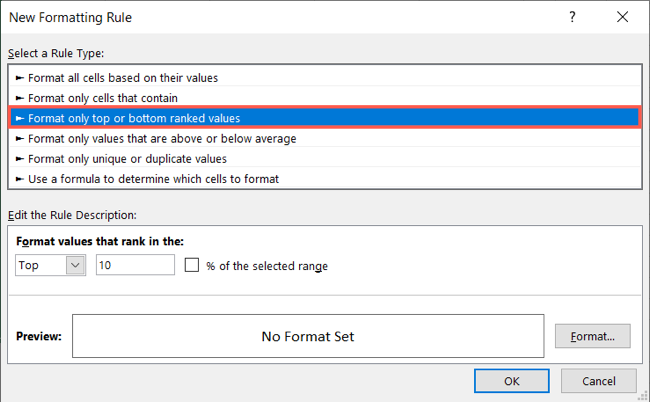

When the New Formatting Rule window opens, select “Format Only Top or Bottom Ranked Values” from the rule types.

Pick Format Only Top or Bottom Ranked Values

At the bottom of the window is a section for Edit the Rule Description. This is where you’ll set up your number or percentage and then select the formatting.

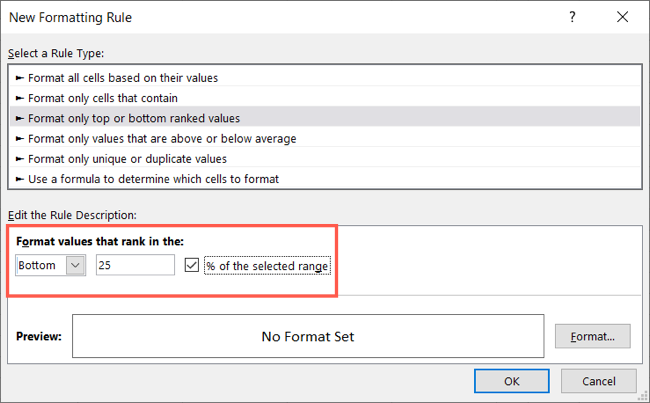

In the first drop-down list, pick either Top or Bottom. In the next box, enter the number that you want to use. If you want to use percentage, mark the checkbox to the right. For this example, we want to highlight the bottom 25%.

Pick Top or Bottom and enter the value

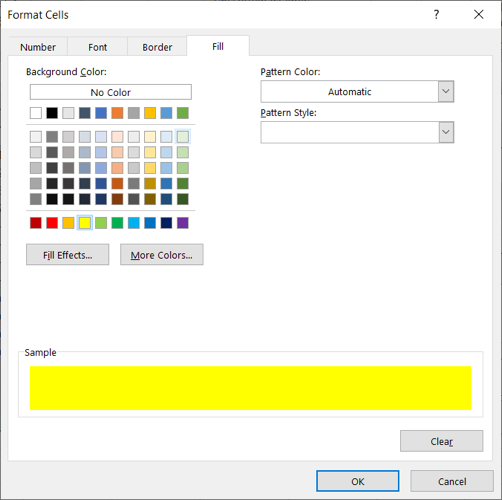

Click “Format” to open the Format Cells window. Then, use the tabs at the top to choose Font, Border, or Fill formatting. You can apply more than one format if you like. Here, we’ll use an italic font, a dark cell border, and a yellow fill color.

Select the formatting

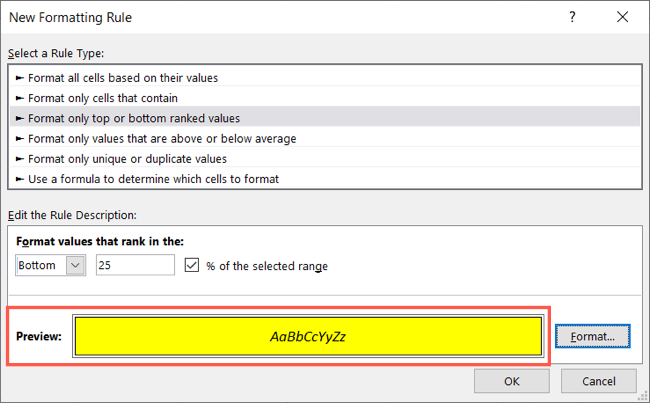

Click “OK” and check out the preview of how your cells will appear. If you’re good, click “OK” to apply the rule.

Review the conditional formatting preview and click OK

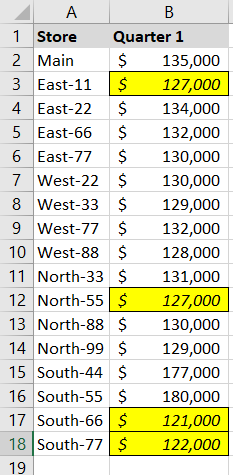

You’ll then see your cells immediately update with the formatting that you selected for the top- or bottom-ranked items. Again, for our example, we have the bottom 25%.

Conditional formatting bottom 25 percent in yellow

vMix HD - Software based live production. vMix HD includes everything in vMix Basic HD plus 1000 inputs, Video List, 4 Overlay Channels, and 1 vMix Call
This bundle includes Studio 200 for vMix from Virtualsetworks, HTTP Matrix 1.0 automation scheduler, and 4 introductory training videos from the Udemy vMix Basic to Amazing course.

If you’re interested in trying out other conditional formatting rules, take a look at how to create progress bars in Microsoft Excel using the handy feature!
